Welcome To Baoding Kuoda Lifting Machinery Co.Ltd. English|中文

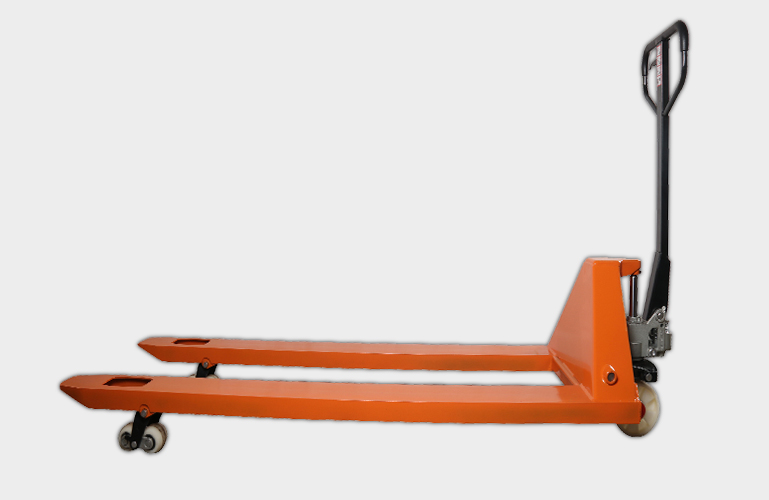

hand pallet truck-long size

Introduction

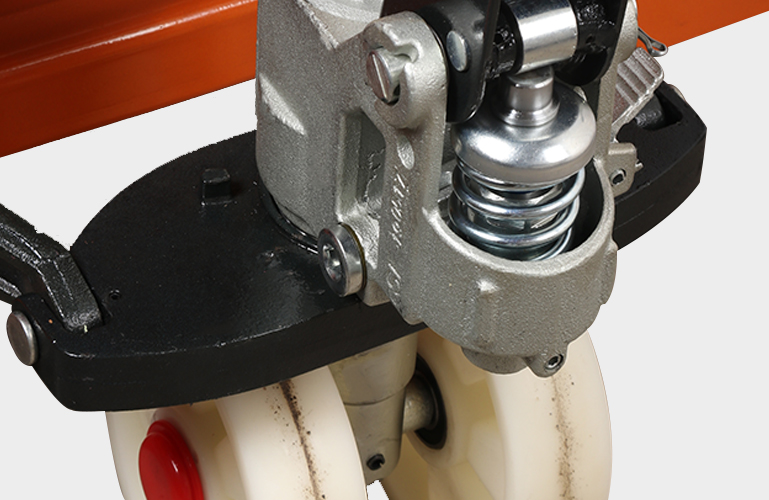

The oil pump is an integral sealed type the key parts are imported from Germany the root of the abuse of oil leakage the size of the piston rod chrome treatment the structure is firm the internal overflow valve with overload protection effectively avoid overload use. Descent speed control spool adopts integral parts different from scattered parts easy maintenance.
Customers can customize different lengths of fork according to their needs.

Product features

Super long manual hydraulic truck is designed for carrying some super long cargo. It can be loaded on all kinds of super long and wide weights. It runs on the narrow head to make the cargo more stable during transportation and not easy to fall off the fork.

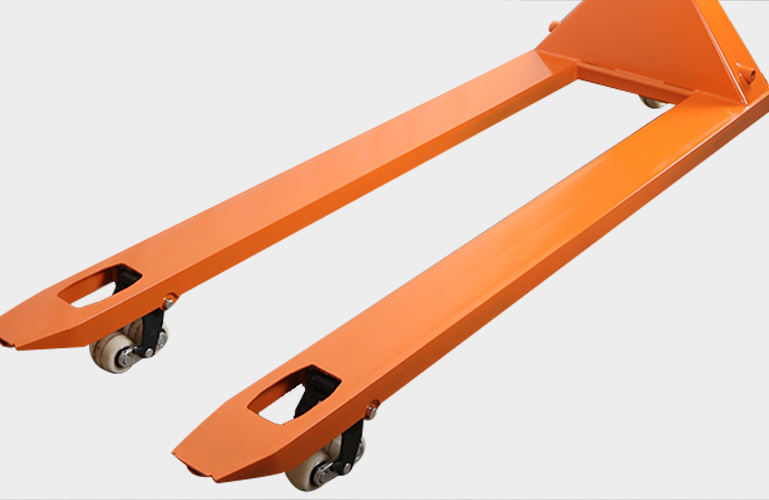

The cargo fork and triangle plate adopt the processing technology of integral forming the cargo fork plug adopts the conical arc design the back all has the strengthening unit the strength increases 25% guarantees in the normal use the cargo fork never deforms the surface static electricity spray model the anti-wear does not fade.
Comfortable handlebars and leaning handrail conform to ergonomic principles with three functions of lifting handling and lowering safe operation simple and flexible more comfortable control experience can be enjoyed when using.
All steel products adopt ion cutting CNC machine stamping CNC welding machine + welding robot welding manual grinding rustproof chassis background color automatic plastic spraying assembly line assembly load test balance test; Cylinder and other key parts of the use of hydraulic machine test fatigue life test and so on; Factory technical research and development engineers are logistics machinery senior experts;
Material code unit
Rated Load kg 2000 2000 3000 3000
Max Fork Height mm 200 200 200 200
Min Fork Height mm 85 85 85 85
Fork Length mm 2000 2000 2000 2000
Fork Overal Width mm 540 685 540 685
Single Fork Width mm 160 160 160 160
Front-wheel Size mm Ф?82*70 Ф?82*70 Ф?82*70 Ф?82*70
Rear-wheel Size mm Ф200*50 Ф200*50 Ф200*50 Ф200*50
Net Weight kg 120 125 140 145
