Welcome To Baoding Kuoda Lifting Machinery Co.Ltd. English|中文

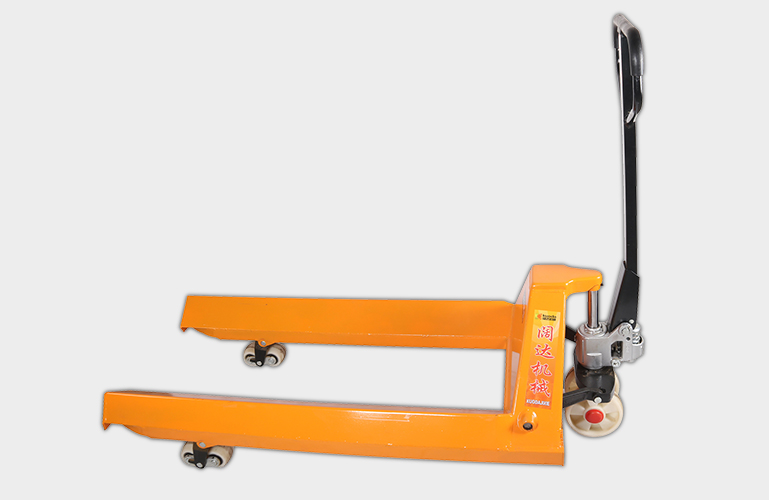

paper roll truck

Introduction

Paper tube truck is suitable for papermaking packaging transportation textile and other industries that need to move cylindrical goods. Unique frame design to meet the needs of handling various diameter cylindrical cargo.
The oil pump is an integral sealed type the key parts are imported from Germany the root of the abuse of oil leakage the size of the piston rod chrome treatment the structure is firm the internal overflow valve with overload protection effectively avoid overload use. Descent speed control spool adopts integral parts different from scattered parts easy maintenance.


Be widely applicable to

1、Suitable for paper industry packaging industry textile industry handling paper cylinder carpet cloth and other cylindrical goods reliable hydraulic pump.
2、The complete package of German original sealing system ensures the service life of the pump up to 2 years. The pump has a unique technology can freely control the rate of decline without considering the weight of the load.
3、Main stress point of the shaft sleeve
4、This feature ensures long service life of the truck and can also be repaired
5、Easy pallet handling
6、Cargo fork point and wheel on the prototype installation bracket design can protect the wheel and drive wheel also easy loading and unloading tray.
7、Heavy duty design durable frame
8/4mmBaosteel high quality steel plate heavy duty design and strong fully welded structure
9、Casters of different materials can meet the requirements of handling in different areas

Product features

1、2 tons of paper tube gauze roll pan head carrier unique goods fork design dedicated to handling tubular goods can effectively protect the goods the weight shift conveyor can replace the traditional handling equipment used in rollarounds easy to use save time and effort is an ideal tool to carry heavy equipment in place in some equipment installation time also can be used instead of the gantry and aim at the advantages and disadvantages of other similar products at home and abroad develop and improve make the product comprehensive performance than foreign products suitable for all kinds of small medium large heavy equipment container handling such as weight is a good way to meet the different needs of customers
Model unit CBY.ZT
Capacity kg 1000/1500/2000/2500
Diameter of bale mm Φ750-Φ1200
Fork length mm 1150/1220
Max width of fork mm 760/850/1000/1150
Steering wheel mm Φ180*50
Fork wheel mm Φ80*70
weight kg 135-175
