Welcome To Baoding Kuoda Lifting Machinery Co.Ltd. English|中文

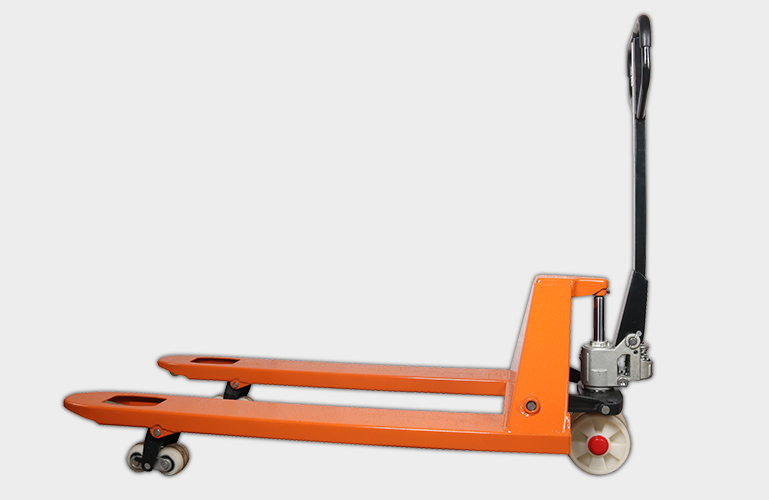

hand pallet truck-AC

steering

Easy to maneuver with 210 degrees turning radiusAll pivots points are greased ensures excellent maneuverability with effortiess streering

Spray finishing

Standard painting system ensures the best power coating and painting quality.

Controlled speed

Speed lowering valve can adjust the descent speed freely.

Reliable construction

Heavy gauge steel constructiondrop forged lift link arms provide avaitable strength and durability.

Easy lowering operation

Foot and hand control the lowering function to ensure easy operation.

Overload protection

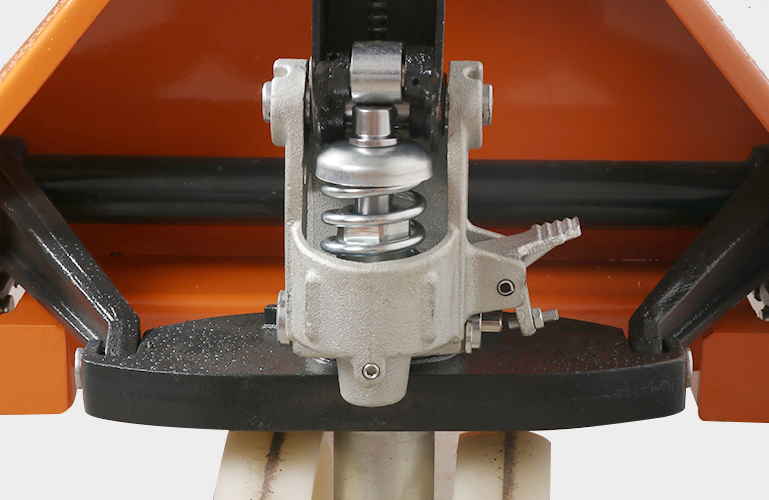

Excellent and compact pump design with high-pressure relief valve to prevent overload.

Options:

Color available in redyellowbule and others.
Different fork lengths and widths available.
Obtainable with rubbernylon or polyurethane steering wheels.
Rollers available in nylon or polyurethane.
Available with Handle A and Handle B.
Model unit CBY-DF 2.0 CBY-DF 2.5 CBY-DF 3.0
Capacity kg 2000 2500 3000
Min fork height mm 85/75 85/75 85/75
Max Fork Height mm 195/185 195/185 195/185
Lifting height mm 110 110 110
Fork Length mm 1150/1220 1150/1220 1150/1220
Single Fork Width mm 160 160 160
Width overall forks mm 550/685 550/685 550/685
Fork wheel-single mm 80*93/74*93 80*93/74*93 80*93/74*93
Fork wheel-tandem mm 80*70 80*70 80*70
Steering wheel mm 180*50 180*50 180*50
Self weight kg 73-92
Qty/20 feet container pcs 180/144 180/144 180/144
