Model | unit | CBY-DF 2.0 | CBY-DF 2.5 | CBY-DF 3.0 |
Capacity | kg | 2000 | 2500 | 3000 |
Min fork height | mm | 85/75 | 85/75 | 85/75 |
Max Fork Height | mm | 195/185 | 195/185 | 195/185 |
Lifting height | mm | 110 | 110 | 110 |
Fork Length | mm | 1150/1220 | 1150/1220 | 1150/1220 |
Single Fork Width | mm | 160 | 160 | 160 |
Width overall forks | mm | 550/685 | 550/685 | 550/685 |
Fork wheel-single | mm | 80*93/74*93 | 80*93/74*93 | 80*93/74*93 |
Fork wheel-tandem | mm | 80*70 | 80*70 | 80*70 |

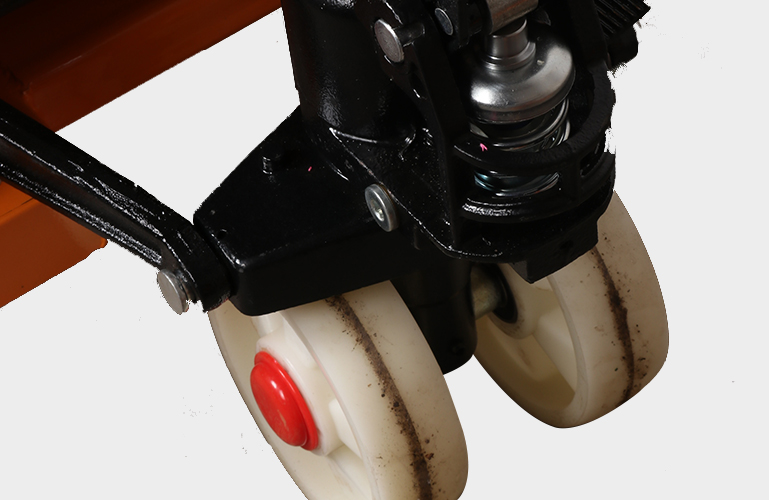

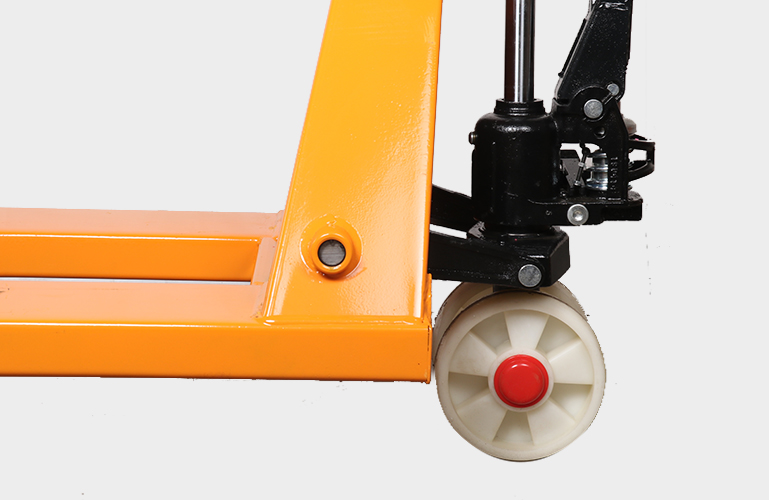

Steering wheel | mm | 180*50 | 180*50 | 180*50 |
Self weight | kg | 73-92 | ||
Qty/20 feet container | pcs | 180/144 | 180/144 | 180/144 |
