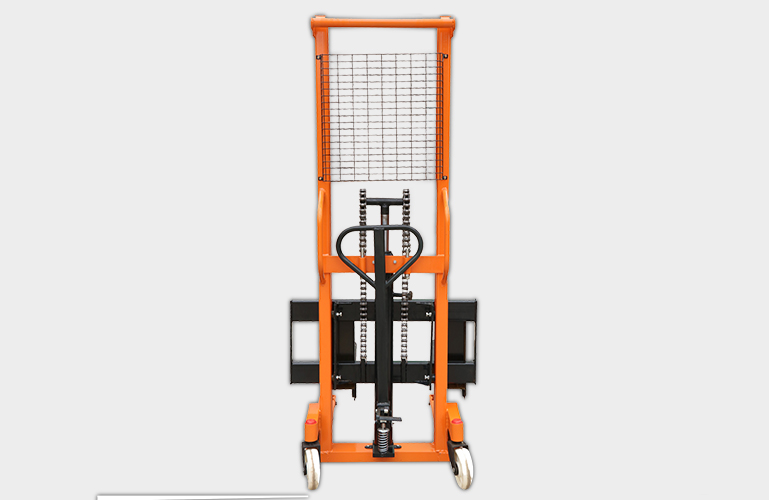

C-type hand stacker

CTY-E SERIES

Hand Stacker is hand push & hand lift stacker which provides cost-effective handling for both vehicle loading and production areas. Easy maintenance and low running costs.

Product features

Rebust steel profile construction
Sturdy and compact enough to fit through standard door and to operate in congested areas.
Lifting function operated by foot and hand controls.
Allow the operator to work without having to perform extreme body movements.
Comfortable handle to ensure easy pulling with long tiller.Safe parking in any Situation.
Heavy duty C-shaped steel construction for strength and rigidity.
Stock Number nuit
Rated Load kg 1000 2000
Load Center mm 400 400
Max Fork Height mm 1600 1600
Min Fork height mm 90 90
Fork Length mm 1000 1000
Single Fork Width mm 100 120
Fork Overal Width mm 300-850 320-850
Front wheel size mm Ф?80*70 Ф?80*70
Rear size mm Ф?150*50 Ф?150*50
Overall Length mm 1380 1380
Overall Width mm 850 850
Overall height mm 2100 2100
Net Weight kg 225 290
